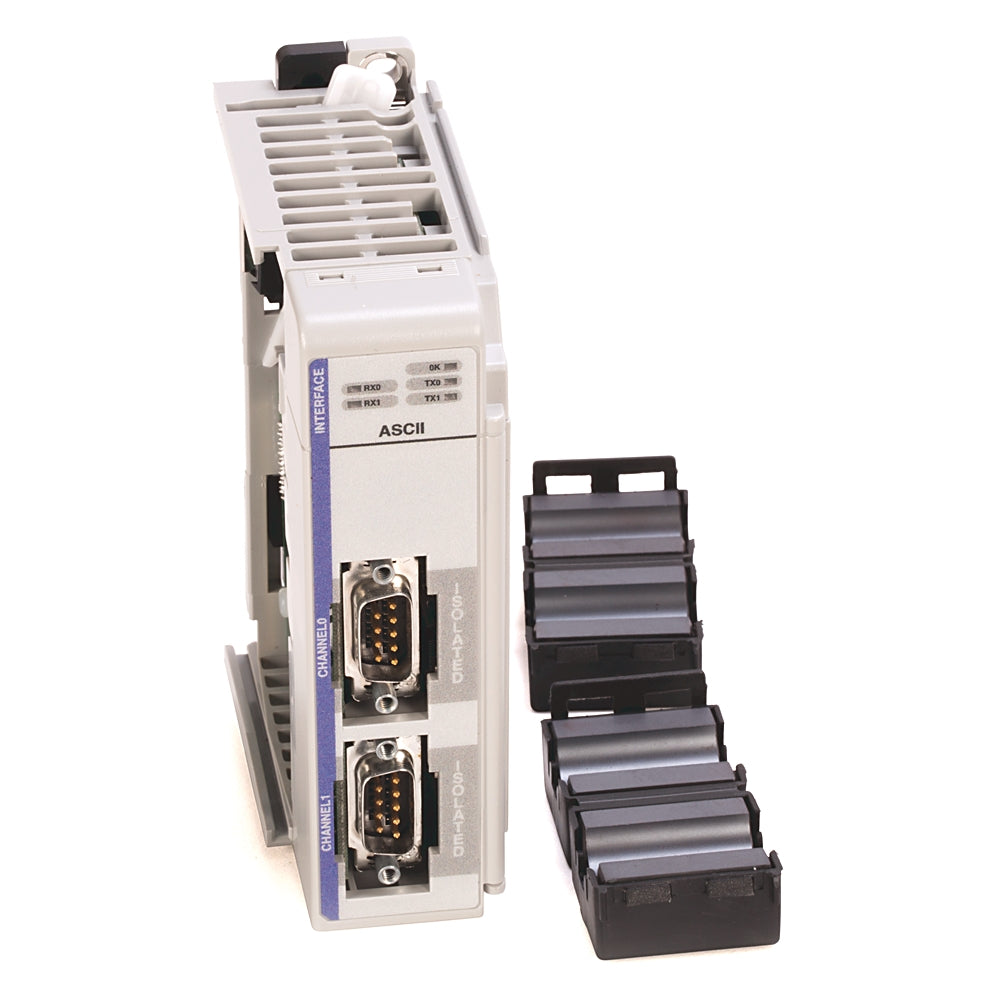

Allen-Bradley 1769-ASCII

PART NUMBER: 1769-ASCII

DESCRIPTION: The Allen-Bradley 1769-ASCII is a CompactLogix ASCII Communication Module engineered for demanding industrial automation environments. The official product description reads: 1769-ASCII CompactLogix 2 Channel RS232/RS485/RS422 ASCII Module, Number of Inputs2 full duplex (RS-232, RS-422), 2 half duplex (RS-485). Key specifications and parameters include CompactLogix ASCII communication module; 2 RS-232/485 ports; supports ASCII protocol. The module interfaces field signals with the controller, converting sensor inputs into data the logic can use and translating logic outputs into signals that drive actuators, with channel counts, signal types and isolation defined by the specific model. It mounts directly in the corresponding chassis, terminal base or plug-in slot and provides status indication to support commissioning and troubleshooting. For compatibility and service, Connects CompactLogix to serial devices via ASCII. Typical applications include ASCII serial communication for CompactLogix, where it supports dependable process and machine operation. Built to Rockwell Automation quality standards, it offers reliable performance, straightforward installation and a long service life.
