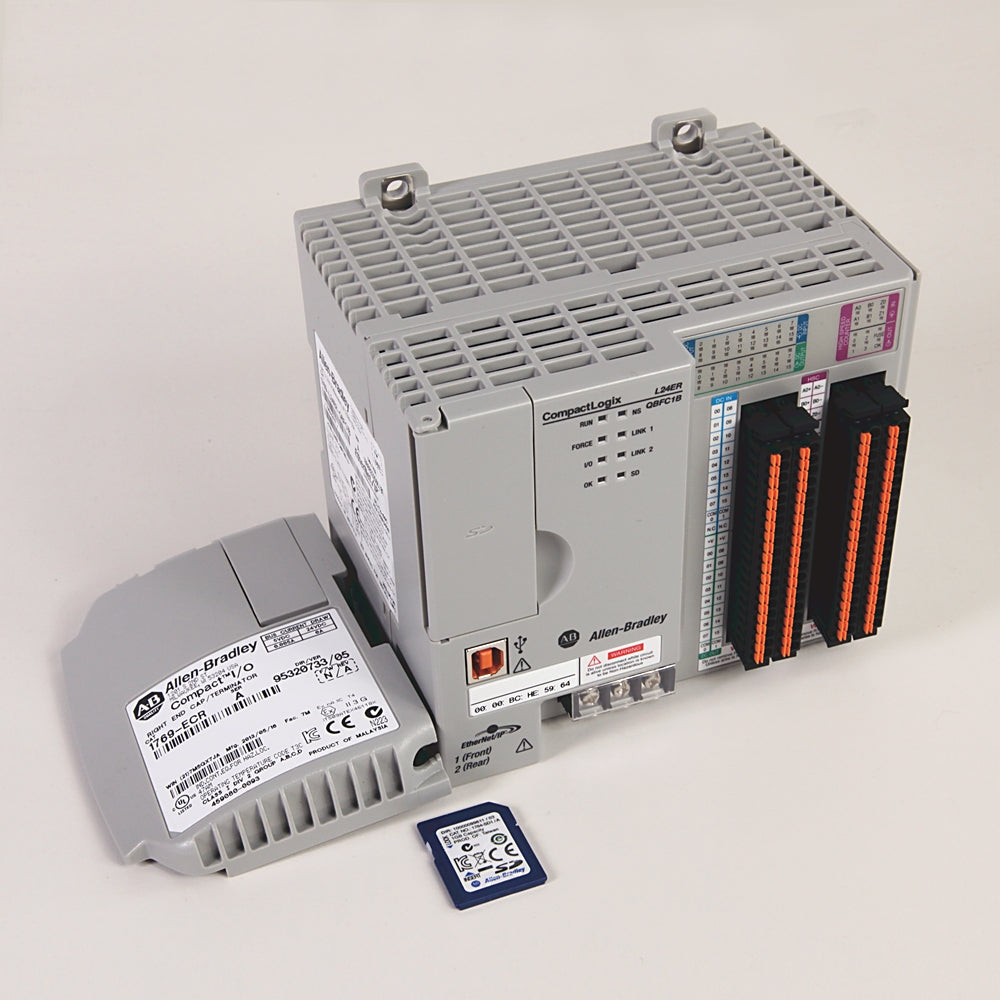

Allen-Bradley 1769-L24ER-QBFC1B

PART NUMBER: 1769-L24ER-QBFC1B

DESCRIPTION: The Allen-Bradley 1769-L24ER-QBFC1B is a CompactLogix 5370 L2 Controller engineered for demanding industrial automation environments. The official product description reads: 1769-L24ER-QBFC1B CompactLogix 5370 L2 Controller, 2 EtherNet/IP Ports With Device Level Ring Capability, 750KB Memory, 16 DC Inputs, 16 DC Outputs, 4 Universal Analog Inputs, 2 Analog Outputs, 4 High Speed Counters, Up To 4 1769 I/O Expansion Modules, 8 EtherNet/IP And 120 TCP Connections, 24V DC Input Embedded Power Supply, With 1GB SD card, Can Support Up To 2GB SD Card, 1 USB Port. Key specifications and parameters include CompactLogix 5370 L2 controller; 20 embedded I/O (12 24VDC sink/source inputs, 8 24VDC source outputs); 4 analog inputs; 2 analog outputs; 1.5 MB memory; 16 local I/O modules; EtherNet/IP; with terminals. The module interfaces field signals with the controller, converting sensor inputs into data the logic can use and translating logic outputs into signals that drive actuators, with channel counts, signal types and isolation defined by the specific model. It mounts directly in the corresponding chassis, terminal base or plug-in slot and provides status indication to support commissioning and troubleshooting. For compatibility and service, Part of CompactLogix 5370 family; uses Studio 5000 Logix Designer. Typical applications include Machine control with embedded I/O, where it supports dependable process and machine operation. Built to Rockwell Automation quality standards, it offers reliable performance, straightforward installation and a long service life.
