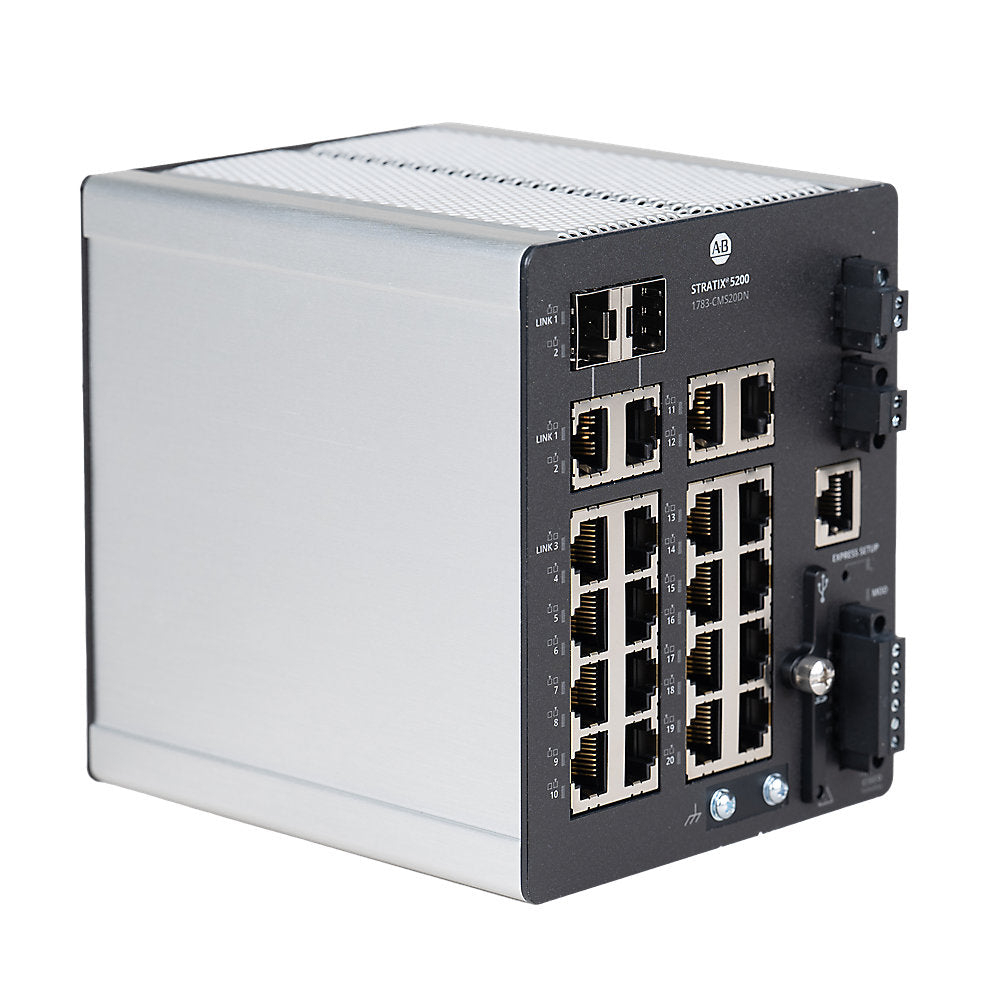

Allen-Bradley 1783-CMS20DN

PART NUMBER: 1783-CMS20DN

DESCRIPTION: The Allen-Bradley 1783-CMS20DN is a Stratix 5200 Managed Switch engineered for demanding industrial automation environments. The official product description reads: 1783-CMS20DN Stratix 5200 Managed EtherNet Switch, 18 x 100/1000Mbps Copper Ports RJ45 and 2 x 100/1000Mbps Combo Ports, 2 x Power Source Connectors, 24/48V DC Power (12-60V DC Range), Full Software, IEEE 1588 Precision Time Protocol, DLR/PRP/NAT, Din Rail Mounting, IP30. Key specifications and parameters include 18 x 100/1000 Mbps copper ports + 2 combo ports; 2 power connectors; 24/48V DC (12-60V DC); full software; IEEE 1588 PTP; DLR/PRP/NAT; DIN rail; IP30. The device provides managed or unmanaged switching with multiple ports for building a resilient control network, with diagnostics, port status and configuration accessible through the corresponding management interface. It is designed to operate reliably in the temperature and vibration conditions found on factory floors, supporting fast fault identification and network commissioning. For compatibility and service, Compatible with EtherNet/IP; works with Logix controllers. Typical applications include Managed industrial Ethernet with DLR/PRP ring redundancy and NAT for plant networks, where it supports dependable process and machine operation. Built to Rockwell Automation quality standards, it offers reliable performance, straightforward installation and a long service life.
